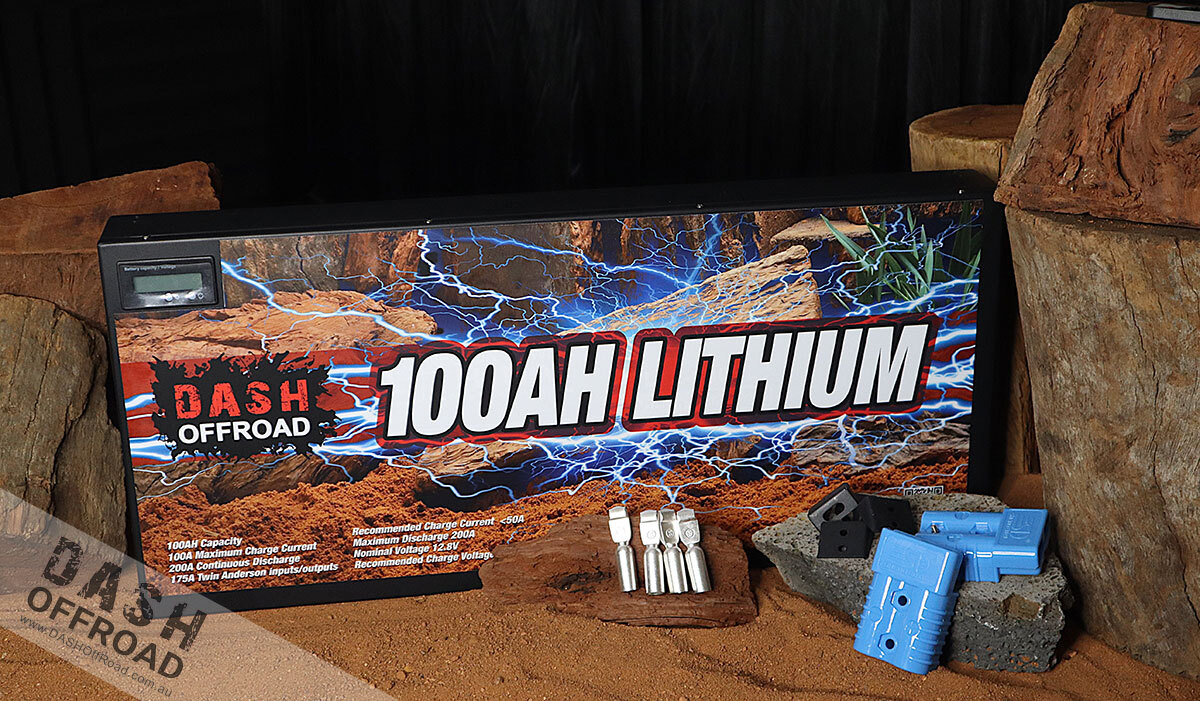

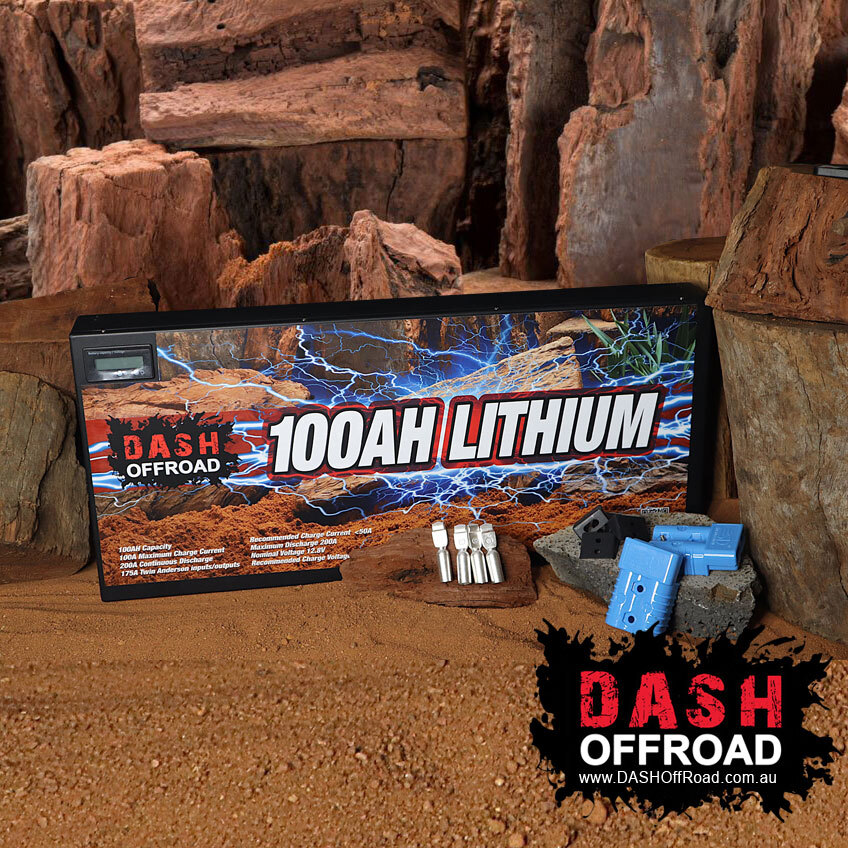

DASH Super Slim 100ah Lithium Battery

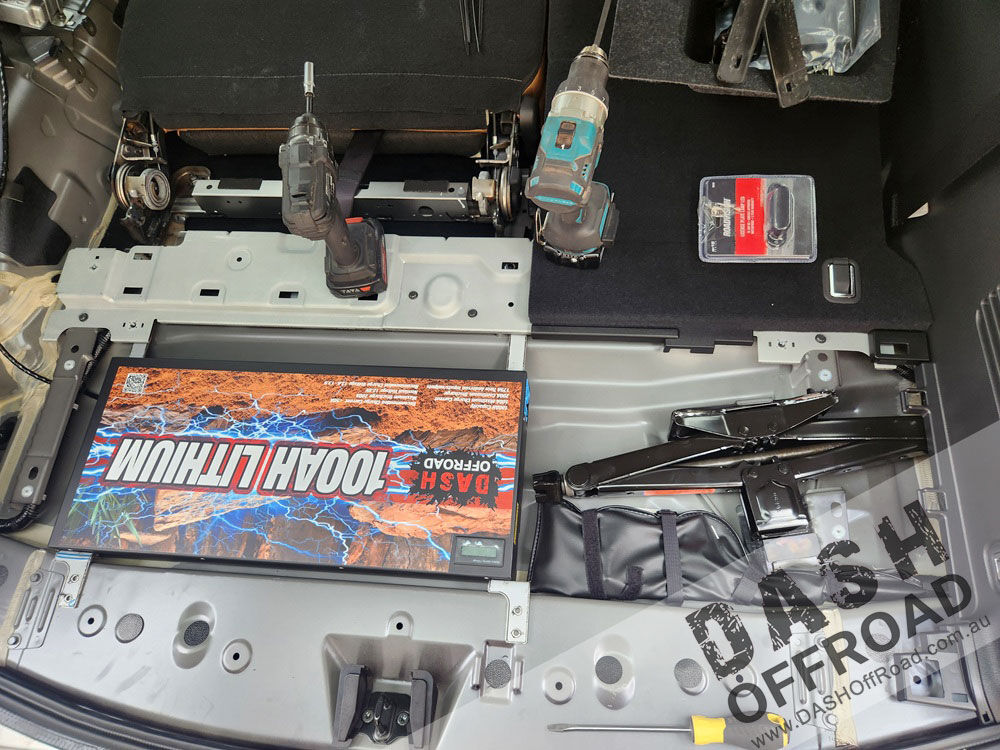

DASH Offroad (12.8V) LiFePO4 (LFP) Slimline Series Batteries are lightweight and feature an ultra-thin design, making them ideal for UTE, 4WD, and marine applications.
The prismatic LFP cells are intrinsically more reliable, more powerful, and have a longer cycle life than their AGM counterparts. The built-in BMS enhances the battery's protection and performance by continuously monitoring voltage, temperature, and ensuring precise cell balancing.

Features

  • Made from eco-friendly materials
  • Construction of high-quality prismatic cells
  • Currently the safest lithium technology in the market
  • Excellent resistance against harsh conditions and abuse
  • Less than 3% self-discharge per month
  • Maintenance-free and modular
  • Up to 60% weight saving compared to its AGM counterparts

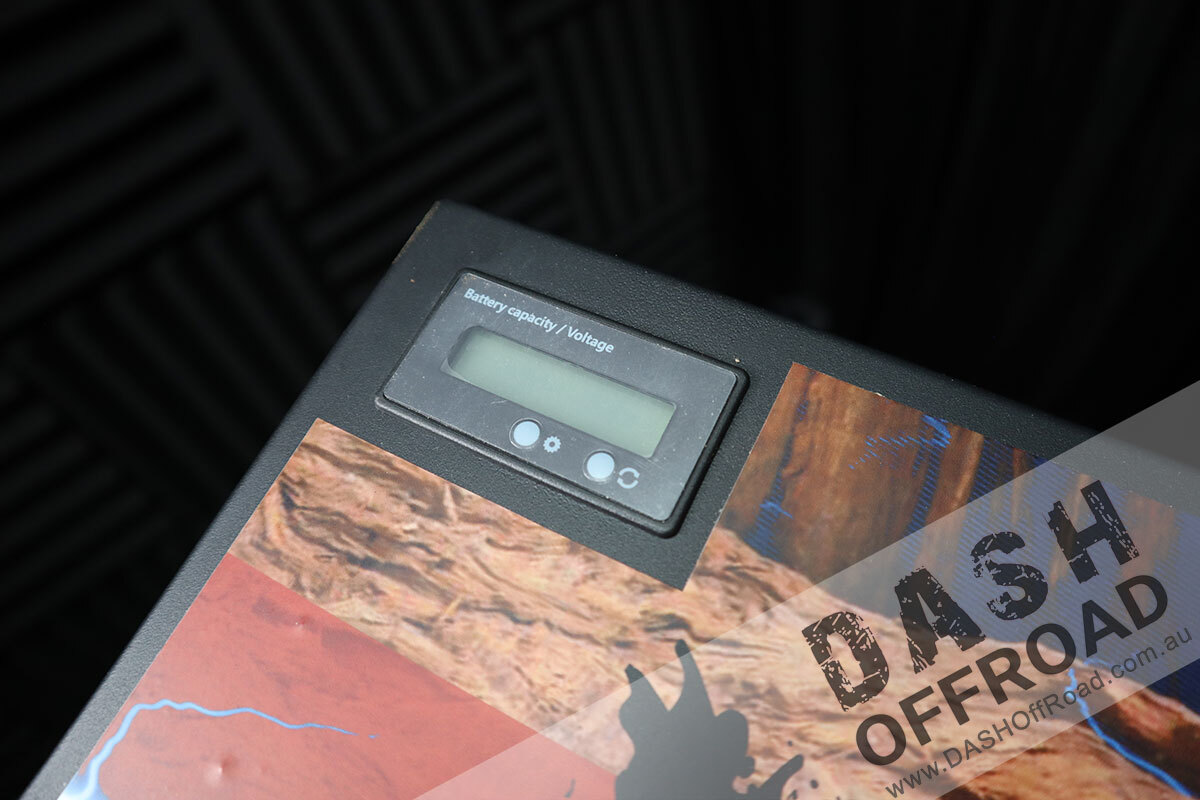

  • LCD screen for SOC display
  • Built-in safety protections
  • 5 Year warranty
  • Design life of up to 15-20 years
  • Dimensions 600mm x 270mm x 65mm

Performance Data

Time (min) 60 120 180 240 360 480
Constant Power (kw) 2.56 1.28 0.86 0.64 0.42 0.32
Constant Current (A) 200 100 66.6 50 33.3 25



Specifications

  • Voltage Range(V): 9.2~14.6
  • Cell: 3.2V100Ah
  • Cell Series & Parallels: 4S1P
  • Rated Voltage(V): 12.8
  • Rated Capacity(Ah): 100
  • Rated Energy(KWh): 1.28
  • Maximum Charge Current(A): 100
  • Maximum Discharge Current(A): 200
  • Pulse Current(A)(≤5s): 600
  • End of Discharge Voltage (V): 11.2
  • Recommended Charge Voltage(V): 13.6~13.8
  • Life Cycle (0.5C/0.25C,80%DOD @ 25℃): Approx 4000
  • Short-circuit Current(<10ms): Approx.1200A
  • Dimension ( L*W*T ): (600*270*65)mm
  • Total Weight (Kg): Approx.15
  • Internal Resistance (Fully charged @ 25℃): ≤5 mΩ
  • Thermal Management: Convection cooling
  • Operating Temperature Change: 0~50℃
  • Operating Temperature Discharge: -20~65℃
  • Operating Humidity: 60±25% R.H.

Mechanical Specifications

  • Case Material: SPCC
  • Cell Type-Chemistry: Prismatic LiFePO4

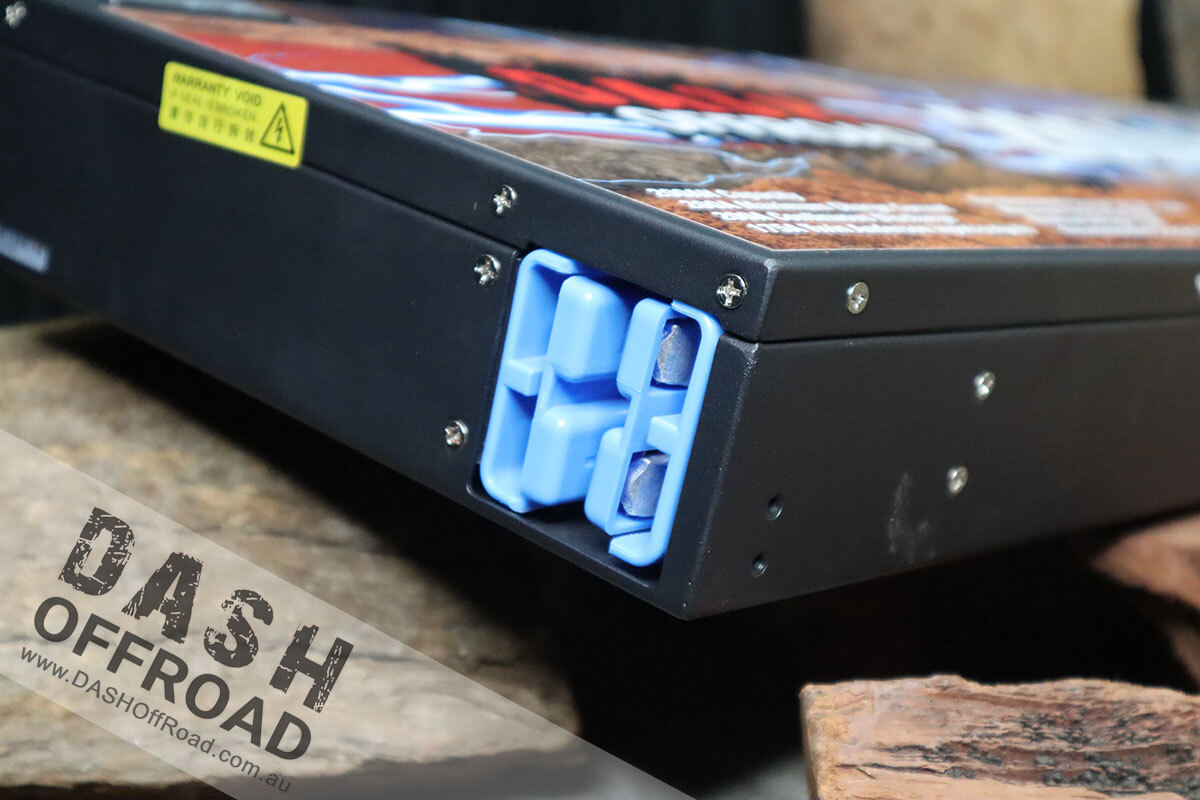

  • Terminal Type: 2*175 Anderson
  • IP Grade: IP2X

BMS Characteristics

  • Recommended Charge Current: <50A
  • Maximum Charge Current: 100A
  • Maximum Continuous Discharge Current: 200A
  • Recommended Charge Voltage: 13.6V-13.8V
  • Max Charge Voltage: 14.6V
  • Over Charge Protection Voltage Range: 14.8-15.2V
  • Charge Mode: CC/CV
  • Over Discharge Protection Voltage Range: 8.4-10V





(DSLB-003)

SKU DSLB-003
Brand DASH OffRoad
Shipping Weight 15.0000kg
Shipping Width 0.065m
Shipping Height 0.270m
Shipping Length 0.600m
Shipping Cubic 0.010530000m3
